Use React and LeaferJS to build a demo

Today we will learn how to combine the powerful graphics capabilities of LeaferJS with the declarative UI framework of React to create a reusable interactive click game component and equip it with a leaderboard.

In this tutorial, we will:

Set up a React component to host the LeaferJS application.
Manage LeaferJS instance during the lifecycle of React component.
Use React state to drive updates to game logic and LeaferJS graphics.
Implement a leaderboard logic based on localStorage and display it with React.
Provides complete React component code and usage instructions.

Introduction#

LeaferJS is a high-performance 2D graphics rendering engine and UI framework. It aims to provide developers with a simple, easy-to-use and powerful API for creating rich, interactive 2D graphics applications and user interfaces in the browser (mainly through Canvas) or other JavaScript environments.

You can think of LeaferJS as a scene graph system. Unlike procedural drawing that directly operates the native Canvas API, LeaferJS allows you to define and manage graphic elements (such as rectangles, circles, images, text, paths, and Box and Group containers for layout, etc.) in an object-oriented way. These elements are organized in a hierarchical tree structure. When you modify the properties of an element (such as position, color, size), LeaferJS will intelligently detect the changes and efficiently re-render the affected parts.

The core goals of LeaferJS include:

Simplify the development of complex graphics: Reduce the complexity of graphics programming through declarative and object-oriented methods.
Provide rich UI building capabilities: Not only drawing, but also support UI components, layout and interaction.
Pursue high-performance rendering: Optimize the rendering process to ensure the smoothness of animation and interaction.
Cross-platform compatibility: In addition to browser Canvas, other rendering targets or environments may also be supported (please refer to its latest documentation for details).

Typical application scenarios:

Data visualization charts
Interactive mini-games or animations
Online graphics editors, drawing tools
Complex Web UI interfaces and custom controls
Any Web application that requires high-performance graphics rendering

Preparation and project setup#

React environment: You need a React project environment. If you are a beginner, you can use create-react-app or Vite (Vite is recommended for faster development experience) to quickly build it.
LeaferJS: We will introduce LeaferJS through CDN, or you can install it through npm/yarn in the React project (pnpm add leafer-ui). For simplicity, this tutorial assumes that you are importing via CDN. You need to add LeaferJS’s <script> tag to your public/index.html:

<script src="https://unpkg.com/[email protected]/dist/web.min.js"></script>

Basic knowledge: Familiar with React Hooks (useState, useEffect, useRef).

Create the `LeaferClickerGame` React component#

We will create a file called LeaferClickerGame.jsx. This component will be responsible for rendering the game canvas and leaderboard.

dependencies#

import { useState, useEffect, useRef, MutableRefObject } from 'react';
import * as LeaferUI from 'leafer-ui';

prepare manager#

const LeaderboardManager = {
    config: {
        storageKey: 'reactLeaferGameLeaderboard',
        maxEntries: 5
    },
    scores: [],
    init: function(userConfig = {}) {
        this.config = { ...this.config, ...userConfig };
        const storedScores = localStorage.getItem(this.config.storageKey);
        if (storedScores) {
            this.scores = JSON.parse(storedScores);
        }
        this._sortScores();
    },
    addScore: function({ name, score }: { name: string, score: number }) {
        if (!name || typeof score !== 'number') return false;
        this.scores.push({ name, score, date: new Date().toISOString().slice(0,10) });
        this._sortScores();
        localStorage.setItem(this.config.storageKey, JSON.stringify(this.scores));
        return true;
    },
    getScores: function(count: number) {
        const numToReturn = count || this.config.maxEntries;
        return this.scores.slice(0, numToReturn);
    },
    _sortScores: function() {
        this.scores.sort((a, b) => b.score - a.score);
        if (this.scores.length > this.config.maxEntries) {
            this.scores = this.scores.slice(0, this.config.maxEntries);
        }
    },
    escapeHtml: function(unsafe) { // Basic XSS Prevention
        if (typeof unsafe !== 'string') return '';
        return unsafe
             .replace(/&/g, "&amp;")
             .replace(/</g, "&lt;")
             .replace(/>/g, "&gt;")
             .replace(/"/g, "&quot;")
             .replace(/'/g, "&#039;");
    }
};

component#

const LeaferClickerGame = () => {
    const leaferContainerRef = useRef(null);
    const leaferApp: MutableRefObject<LeaferUI.Leafer | null> = useRef(null); // Leafer App instance

    // Refs for Leafer UI elements
    const scoreTextRef: MutableRefObject<LeaferUI.Text | null> = useRef(null);
    const timeTextRef: MutableRefObject<LeaferUI.Text | null> = useRef(null);
    const buttonRectRef: MutableRefObject<LeaferUI.Rect | null> = useRef(null);
    const buttonTextRef: MutableRefObject<LeaferUI.Text | null> = useRef(null);
    const gameTitleRef: MutableRefObject<LeaferUI.Text | null> = useRef(null);

    const startRef = useRef(false)

    const GAME_DURATION = 10;

    const [clicks, setClicks] = useState(0);
    const [timeLeft, setTimeLeft] = useState(GAME_DURATION);
    const [gameActive, setGameActive] = useState(false);
    const [currentButtonText, setCurrentButtonText] = useState('Start');

    const [leaderboard, setLeaderboard] = useState([]);
    const gameTimerRef: MutableRefObject<number | null> = useRef(null);

    // Event listener for the button
    const handleTap = () => {
      if (!startRef.current) { // Start game
        startRef.current = true
        setGameActive(true);
        setClicks(0);
        setTimeLeft(GAME_DURATION);
        setCurrentButtonText('Click me!');
     } else if (timeLeft > 0) { // Game in progress
         setClicks(c => c + 1);
         // Visual feedback
         if(buttonRectRef.current) {
             buttonRectRef.current.scaleX = 0.95;
             buttonRectRef.current.scaleY = 0.95;
             setTimeout(() => {
                if(buttonRectRef.current) {
                    buttonRectRef.current.scaleX = 1;
                    buttonRectRef.current.scaleY = 1;
                }
             }, 80);
         }
     }
 };

    // Initialize Leaderboard on component mount
    useEffect(() => {
        LeaderboardManager.init();
        setLeaderboard(LeaderboardManager.getScores(clicks));
    }, []);

    // LeaferJS Setup and Cleanup
    useEffect(() => {
        if (!leaferContainerRef.current || typeof LeaferUI === 'undefined') {
            console.warn("LeaferUI not loaded or container not found.");
            return;
        }

        const app = new LeaferUI.Leafer({
            view: leaferContainerRef.current,
            width: 500,
            height: 350,
            fill: '#f0f8ff', // AliceBlue background
        });
        leaferApp.current = app;

        // Create LeaferJS UI Elements
        gameTitleRef.current = new LeaferUI.Text({
            text: 'React & LeaferJS Click Challenge!', fontSize: 24, fontWeight: 'bold', fill: '#333',
            textAlign: 'center', width: app.width, y: 20
        });

        buttonRectRef.current = new LeaferUI.Box({
            width: 160, height: 50, fill: '#007bff', cornerRadius: 8,
            stroke: '#0056b3', strokeWidth: 1, shadow: { x: 1, y: 1, blur: 3, color: 'rgba(0,0,0,0.2)' },
            around: 'center', x: app.width! / 2, y: app.height! / 2 + 20, cursor: 'pointer',
        });

        buttonTextRef.current = new LeaferUI.Text({
            text: currentButtonText, fontSize: 18, fill: 'white', textAlign: 'center', zIndex: 10,
            verticalAlign: 'middle', width: buttonRectRef.current.width, height: buttonRectRef.current.height,
        });

        buttonRectRef.current.add(buttonTextRef.current)

        scoreTextRef.current = new LeaferUI.Text({
            text: `Click: 0`, fontSize: 16, fill: '#444', x: 20, y: app.height! - 30
        });
        timeTextRef.current = new LeaferUI.Text({
            text: `Time: ${GAME_DURATION}s`, fontSize: 16, fill: '#444',
            textAlign: 'right', width: app.width! - 40, x: 20, y: app.height! - 30
        });

        app.add(gameTitleRef.current);
        app.add(buttonRectRef.current);
        app.add(scoreTextRef.current);
        app.add(timeTextRef.current);

        buttonRectRef.current.on('tap', handleTap);

        return () => { // Cleanup on unmount
            if (gameTimerRef.current) clearInterval(gameTimerRef.current);
            // if (buttonRectRef.current) buttonRectRef.current.off('tap', handleTap); // Remove listener
            if (leaferApp.current) {
                leaferApp.current.destroy();
                leaferApp.current = null;
                buttonRectRef.current?.off('tap', handleTap)
            }
        };
    }, []); // Empty dependency array: runs once on mount, cleans up on unmount

    // Game Timer Logic
    useEffect(() => {
        if (gameActive && timeLeft > 0) {
            gameTimerRef.current = setInterval(() => {
                setTimeLeft(t => t - 1);
            }, 1000);
        } else if (timeLeft === 0 && gameActive) {
            setGameActive(false);
            setCurrentButtonText('Time is up!');
            startRef.current = false
            if (buttonRectRef.current) buttonRectRef.current.fill = '#ffc107'; // Yellow

            setTimeout(() => { // Delay for user to see "Time Up!"
                const playerName = prompt(`Congratulations! You have clicked ${clicks} times! \nPlease enter your name：`, 'React Expert');
                if (playerName && playerName.trim() !== "") {
                    LeaderboardManager.addScore({ name: playerName, score: clicks });
                    setLeaderboard(LeaderboardManager.getScores(clicks)); // Update React state for leaderboard
                }
                // Reset for next game
                setCurrentButtonText('Again');
                if (buttonRectRef.current) buttonRectRef.current.fill = '#007bff'; // Blue
                setTimeLeft(GAME_DURATION); // Reset time for next game display
            }, 500);
        }
        return () => {
            if (gameTimerRef.current) clearInterval(gameTimerRef.current);
        };
    }, [gameActive, timeLeft, clicks]);

    // Update LeaferJS elements when React state changes
    useEffect(() => {
        if (scoreTextRef.current) scoreTextRef.current.text = `Click: ${clicks}`;
        if (timeTextRef.current) timeTextRef.current.text = `Time: ${timeLeft}s`;
        if (buttonTextRef.current) buttonTextRef.current.text = currentButtonText;

        if (buttonRectRef.current) {
            if (gameActive && timeLeft > 0) {
                 buttonRectRef.current.fill = '#dc3545'; // Red during game
            } else if (!gameActive && currentButtonText === 'Time is up!') {
                 buttonRectRef.current.fill = '#ffc107'; // Yellow for time up
            } else {
                 buttonRectRef.current.fill = '#007bff'; // Blue for start/replay
            }
        }

    }, [clicks, timeLeft, currentButtonText, gameActive]);

    return (
        <div style={{ fontFamily: 'Arial, sans-serif', display: 'flex', flexDirection: 'column', alignItems: 'center', gap: '20px', padding: '20px', background: '#e9ecef', borderRadius:'10px' }}>
            <div ref={leaferContainerRef} style={{ width: '500px', height: '350px', boxShadow: '0 4px 12px rgba(0,0,0,0.15)', background: '#fff', borderRadius: '8px' }}></div>

            <div style={{ width: '500px', padding: '15px', backgroundColor: '#ffffff', borderRadius: '8px', boxShadow: '0 4px 8px rgba(0,0,0,0.1)' }}>
                <h3 style={{ marginTop: 0, textAlign: 'center', color: '#007bff', borderBottom: '1px solid #eee', paddingBottom: '10px' }}>🏆 Rankings 🏆</h3>
                {leaderboard.length > 0 ? (
                    <ol style={{ paddingLeft: '20px', listStyleType: 'decimal-leading-zero' }}>
                        {leaderboard.map((entry, index) => (
                            <li key={index} style={{ marginBottom: '8px', padding: '5px 0', borderBottom: '1px dashed #eee', display: 'flex', justifyContent: 'space-between', alignItems: 'center' }}>
                                <span>
                                    <span style={{ fontWeight: 'bold', color: '#343a40' }}>{LeaderboardManager.escapeHtml(entry.name)}:</span>
                                </span>
                                <span style={{ color: '#e83e8c', fontWeight: 'bold' }}>{entry.score} <small>pts</small> <small style={{color: '#6c757d'}}>({entry.date})</small></span>
                            </li>
                        ))}
                    </ol>
                ) : (
                    <p style={{ textAlign: 'center', color: '#6c757d' }}>No record yet, come and challenge!</p>
                )}
            </div>
        </div>
    );
};

export#

export default LeaferClickerGame;

use in app#

import { StrictMode } from 'react'
import { createRoot } from 'react-dom/client'
import LeaferClickerGame from './LeaferGame.tsx'

createRoot(document.getElementById('root')!).render(
  <StrictMode>
    <LeaferClickerGame />
  </StrictMode>,
)

Run#

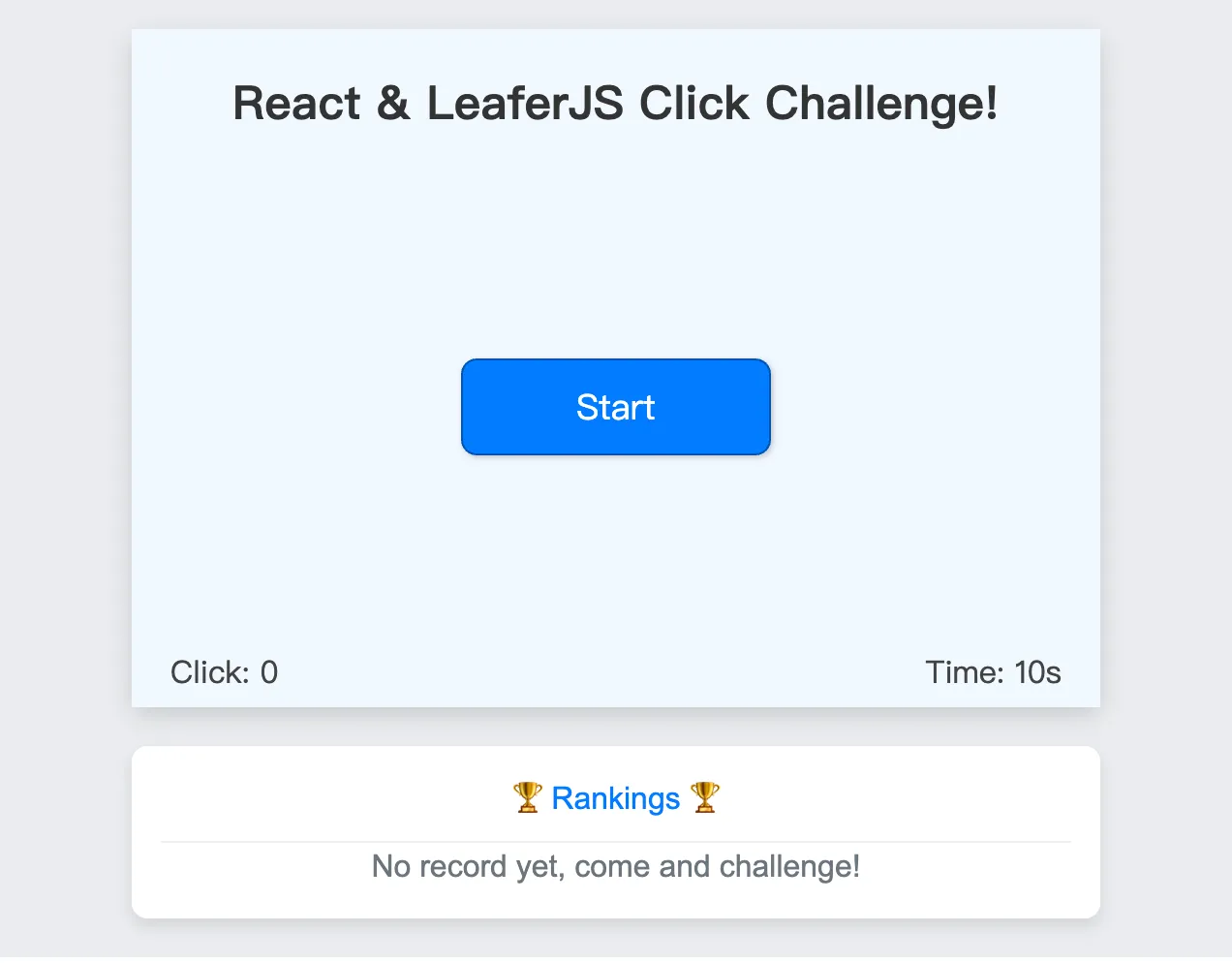

default state#

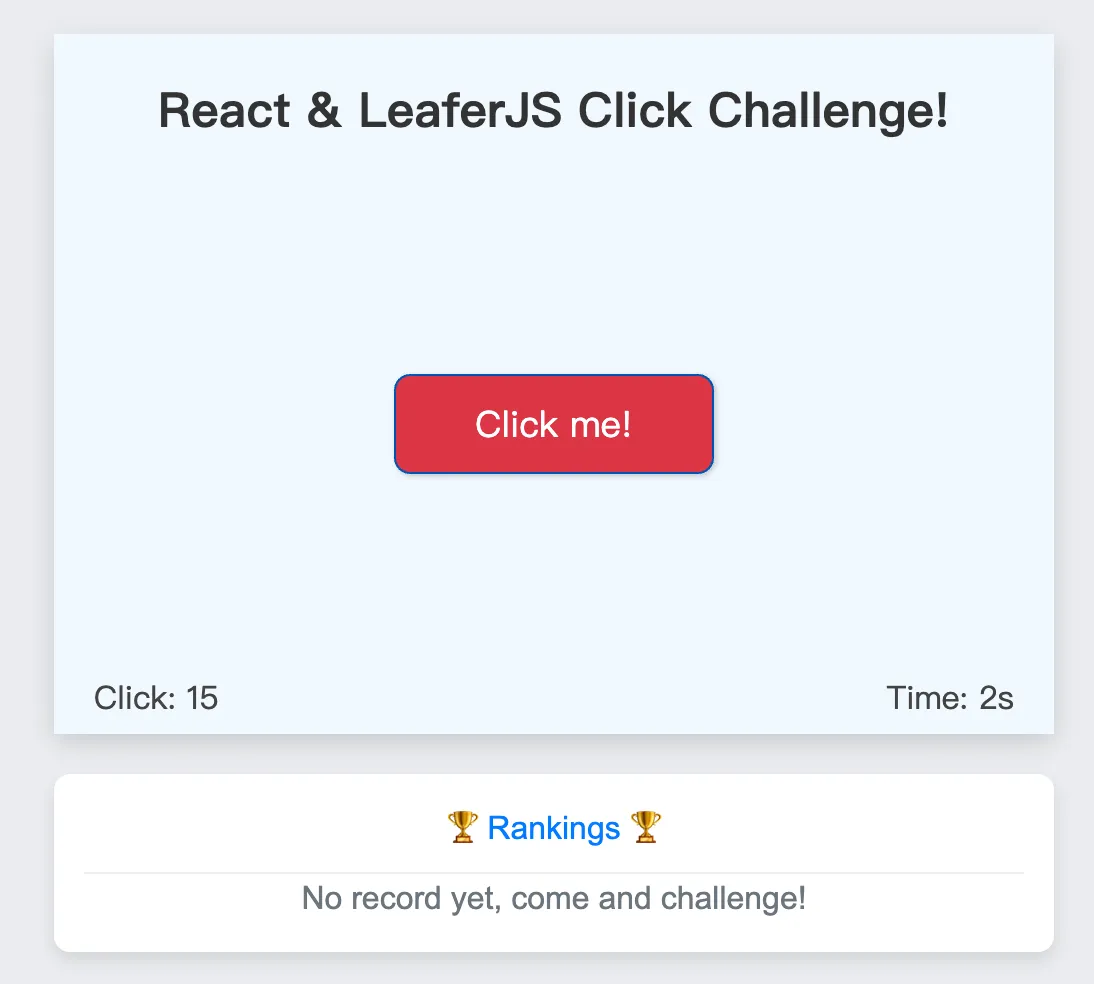

click state#

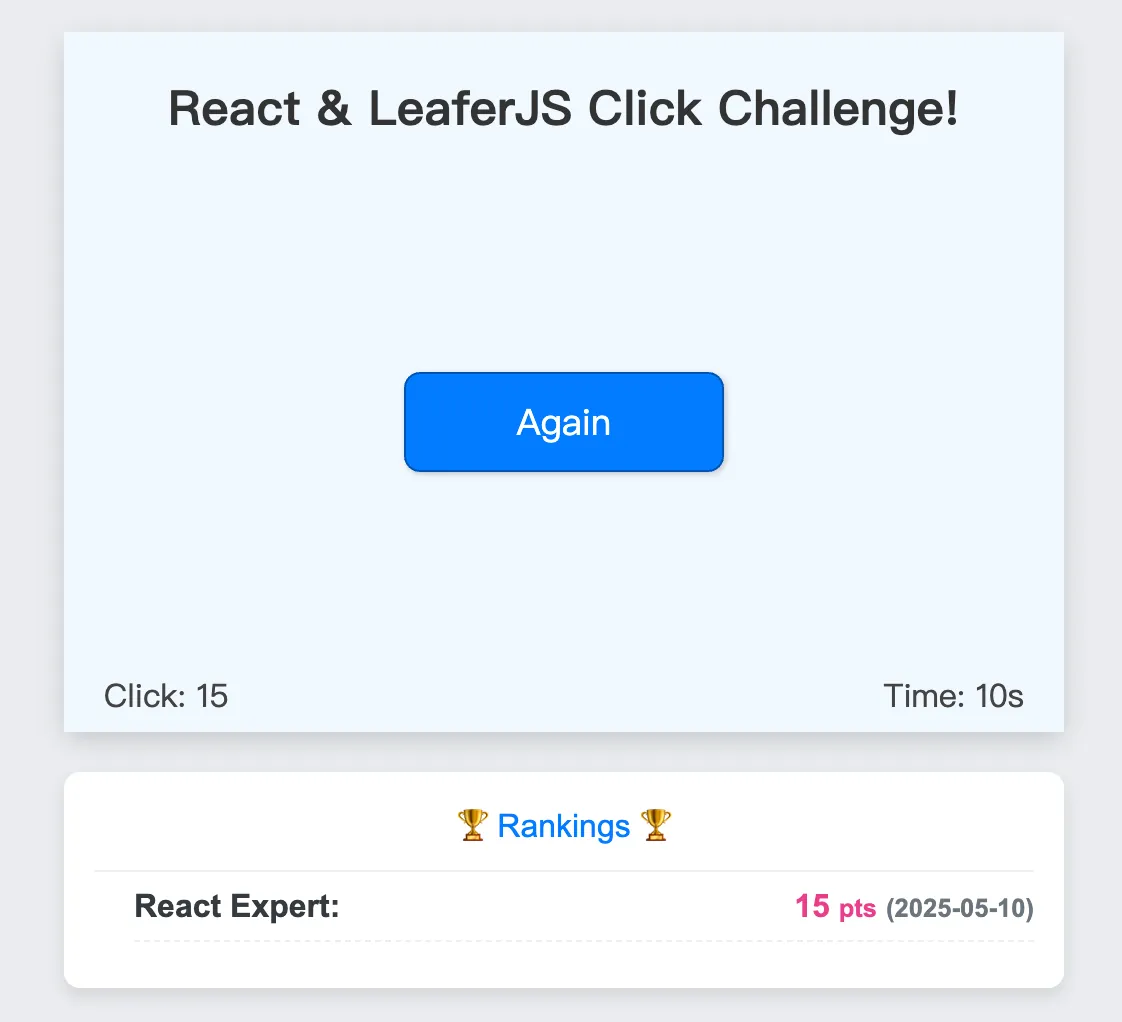

done state#
